Anycast latency: How many sites are enough?

IP anycast is a popular way to scale up and distribute services across the Internet, getting closer to end users. Using anycast, the IP address of a service is available in multiple places on the Internet - so called anycast instances or sites - and Internet routing defines which instance of the service users will reach.

Root DNS nameservers, many ccTLD and gTLD DNS operators as well as large CDN’s widely employ anycast strategies to achieve resilience, load-balancing and distribution of services.

However, blindly trusting the Internet routing system (BGP) brings uncertainty to the mapping between users and anycast instances, which directly impact service performance (latency) and, hence, raises several questions: how many sites does my anycast service need to provide good latency? Could the latency observed by users be better? What impacts most on latency: number of instances or their local connectivity?

We sought to answer these questions in our recent study, the results of which we presented in our 2017 Passive and Active Measurement Conference paper and which I’d like to share with you in this post.

Studying relationship between latency and anycast using RIPE Atlas

We studied the relationship between latency and anycast deployment of four Root DNS servers (C, F, K and L), and used more than 7,000 vantage points (VPs) worldwide from RIPE Atlas.

To determine the catchment (i.e., user to anycast site mapping) we used DNS CHAOS queries; replies to these queries typically include a string that uniquely identify the answering anycast instance.

We also measured the RTT between all VPs and each of the anycast instances of the Root letters we studied, to identify whether the catchment was optimal in terms of latency.

Latency across root servers is pretty good

Overall median latency (RTT) to all root server is between 25 to 32 milliseconds (Figure 1) , which is pretty good.

Anycast_Picture1

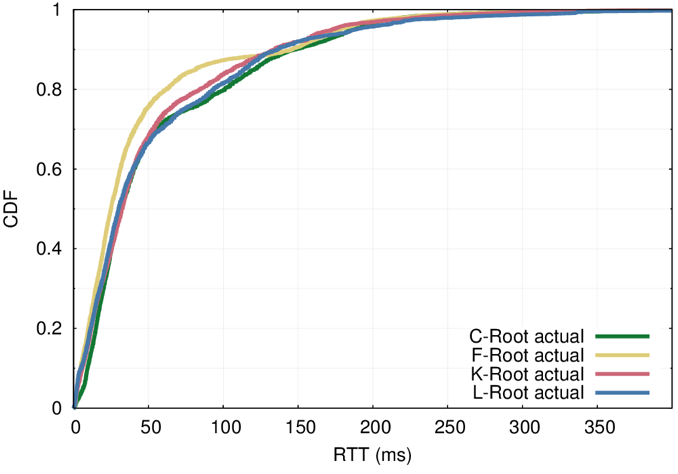

Figure 1: Cumulative distribution function (CDF) of overall median latency (RTT) for Root Servers C, F, K and L.

The similar latency across the studied letters is somewhat surprising, given that the size of anycast deployments are very different: from 8 anycast sites of C-Root, to 144 of L-Root (at the time of measurement).

This suggests that simply adding more sites to an anycast deployment does not necessarily improves overall latency of the service.

Triggered by the long tail of the latency distribution we decided to investigate where were those vantage points that see higher latency.

Figure 2 shows the median, the 25 and 75 percentile of the latency distribution to L-Root, and vantage points are grouped per country. In the left side of the figure, among those countries with higher median RTT, we see that few VPs do experience low latency (as indicated by the lower 25 percentile).

This leads us to conclude that although geographic distribution does not necessarily mean a good network topological distribution, it still can promote good network topological dispersion.

Anycast_Picture2

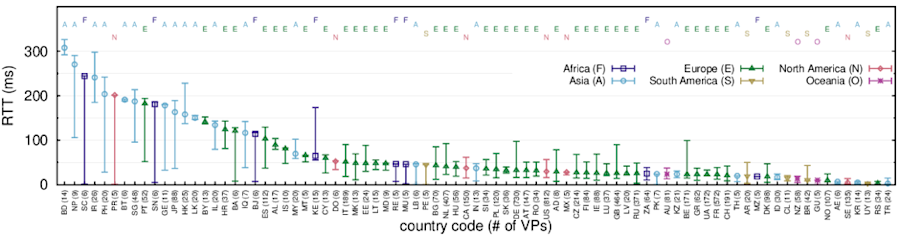

Figure 2: Median latency distribution to L-Root servers for countries.

Routing policies remain a barrier to better latency

Another major barrier to a better latency are routing policies. Take the Philippines for example.  From the figure above, out of the 20 VPs, 7 are mapped to the L-Root instance located in the Philippines itself and, hence, see a low latency to the service. The other 13 VPs however, which are routed to Australia and to the USA, experience much higher latency.

Cases like this shows that for achieving good latency, careful engineering of peering agreements and routing policies is needed in addition to the number of sites of an anycast service.

The answer is 12

Now, answering our main question, that of our work’s title. After carefully studying four very different anycast deployments, we claim that 12 anycast sites would be enough for good overall latency. Two sites per continent, in well chosen and well connected locations can provide good latency to most users.

While a greater number of sites may not necessarily improve overall latency, more sites do help with reducing the number of users that experience higher latency in badly connected networks and served regions -- especially if routing policies and peering are well tuned.

If you want to know more about our work, please check our paper.

Thanks to my research partners Ricardo Schmidt at University of Twente, and John Heidemann from the ANT group at the University of Southern California / Information Sciences Institute

Jan Harm Kuipers isa Computer Science student at the University of Twente.
