SIDN publishes RSSAC002 traffic metrics for .nl

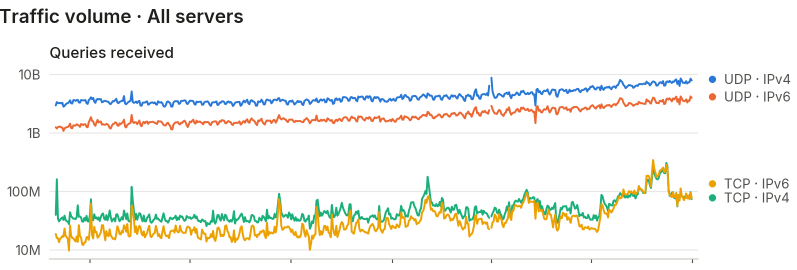

Figure 1: Daily volume of DNS queries received by the .nl authoritative name servers.

What we publish

Every day, the .nl name servers answer billions of DNS queries from all over the world. We summarise that traffic into a small set of daily metrics, such as query and response volumes, response codes and the number of unique sources.

Publishing DNS traffic statistics is not new in itself. We have shared .nl figures on stats.sidnlabs.nl since 2015, CZ.NIC publishes statistics for .cz, and .ie includes traffic figures in its annual reports. But every registry uses its own metrics, definitions and formats, so the numbers can’t be compared with each other or with the root servers.

That is why we now publish in the same format the Root Server Operators use: RSSAC002, a specification from ICANN’s Root Server System Advisory Committee (RSSAC). Root server operators have published these files for years. To our knowledge, .nl is the first top-level domain to publish its data in this format as well.

On the website you will find the daily YAML files, ready-made graphs, a description of each metric and our methodology.

Why this is useful

The DNS is the internet’s address book: before your browser can open a .nl website, a resolver asks our name servers where to find it. Our data shows how that system is used one level below the root. It is the same kind of view the root servers give, but for one of the world’s largest country-code domains.

Because the format is identical, .nl traffic can be compared directly with the root servers. Figure 2 is an example: on a typical day, the .nl name servers together handle about as much traffic as D-Root, one of the 13 root servers, and 50% more than B-Root.

Figure 2: Daily DNS queries received by the .nl name servers compared with B and D-Root.

With these numbers, anyone can see, for example:

• How the internet is changing: how fast IPv6 and TCP are being adopted, and whether DNS responses are getting larger. Larger responses matter for DNSSEC and can cause problems when packets are fragmented.

• How much traffic is noise: the share of queries for domain names that don’t exist, a common sign of misconfiguration or abuse.

• When something unusual happens: sudden peaks or drops can point to outages, attacks or changes at large resolver operators.

Researchers can use the data for DNS measurement and long-term trend studies. Operators can compare their own traffic with a large ccTLD and with the root. Existing tools built for root server data, such as the RSSAC002 charts, can process .nl data without changes.

Why we do this

At SIDN Labs we believe that measurement data about the internet’s core infrastructure should be open. Researchers can use it for DNS measurement and long-term trend studies, and operators can compare their own traffic with a large ccTLD and with the root. We have used the root servers’ RSSAC002 data in our own research, so we know how valuable it is. Now we are giving something back.

The whole pipeline is open source too. The data comes from ENTRADA, our open-source DNS data warehouse. The metrics are computed with our tool, a fork of the original built by computer science students at TU Delft. They developed it on the Software Project course, where teams of bachelor students spend 3 months building working software for an external client. For us, it is a good example of how academic collaboration can turn a real operational need into open-source software that others can use as well. Many thanks to the students.

Any ENTRADA user can run the tool and produce the same statistics for their own servers. We hope other TLD operators will publish their datasets too.

No personal data

The files contain only aggregated, daily statistics. No personally identifiable information (PII) is shared: no IP addresses, no individual queries and no looked up domain names.

What’s next

For now we are publishing the data in batches. Our next step is to fully automate the process, so that new files are released continuously, every day, without manual work.

Links

• Website: rssac002.sidnlabs.nl

• Datasets: github.com/SIDN/nl-rssac002

• Tool: github.com/SIDN/entrada-rssac002 (fork of the original by TU Delft students)

Using the data? We’re curious to know what for. Get in touch via sidnlabs@sidn.nl.
